US Energy Codes Improving Fast (Graphs)

Share on Google+Share on RedditShare on StumbleUponTweet about this on TwitterShare on LinkedInShare on FacebookPin on PinterestDigg thisShare on TumblrBuffer this pageEmail this to someone

April 16th, 2014 by


Originally published on Sefaira.
By Carl Sterner

US Energy Codes Could Surpass LEED

There is a quiet revolution underway in the US: energy codes are being adopted rapidly throughout the country, and the standards on which they are based are becoming increasingly stringent. Within the next decade, all buildings will be required to meet aggressive efficiency goals — in many cases, better than the required performance for LEED.

State Energy Codes are Gaining Ground

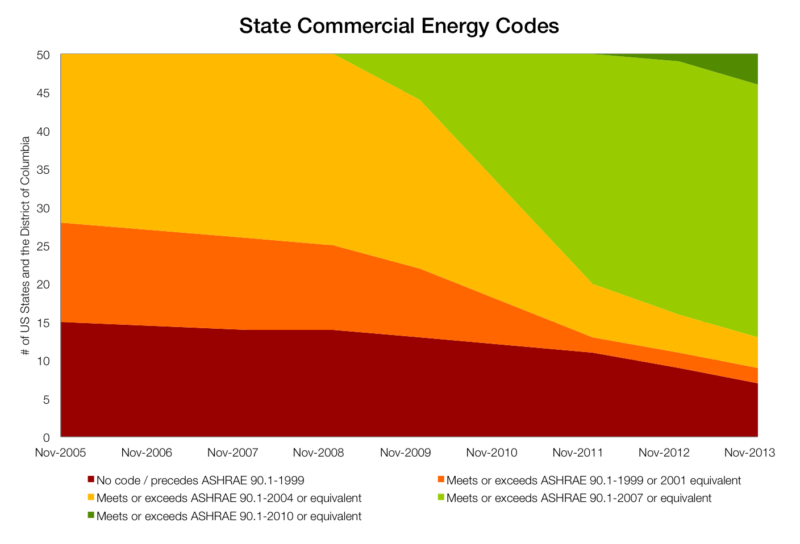

Energy codes specify minimum energy performance requirements for new construction and major renovations. Here are the trends in state energy code adoption (both commercial and residential) over the past eight years: Commercial_Energy_Codes

Residential_Energy_CodesSource: Building Codes Assistance Project (BCAP)

There are a few key takeaways from these charts.

1. The large majority of states have energy codes in place, and the number without codes is rapidly dwindling. As of December 2013, all but seven states have state-wide commercial energy codes, and all but eight have residential energy codes. Furthermore, for those states without state-level codes, an average of 52% of municipalities have filled the gap by adopting energy codes of their own.

2. States are quick to adopt to the latest versions of standards as they become available. In those states with energy codes in place, new standards quickly supplant older standards. This proves to be a significant driver of energy efficiency, as we’ll see below.

3. If current trends continue, by the end of the decade all states will have energy codes in place, and 85% will have adopted codes at least as stringent as ASHRAE Standard 90.1-2010 (the dark green above).

Standards are Improving

Concurrent with these trends, the standards and model codes on which state codes are based are becoming more efficient at an accelerating rate. The 2010/2012 versions of Standard 90.1 and the IECC (the International Energy Conservation Code) are 30% better than their 2004 counterparts.

Code_ImprovementsSource: ACEEE

To put that in perspective, a 30% improvement over an ASHRAE 90.1-2004 baseline would have earned you 10 points under LEED v2.2. Now that same level of performance is required for every commercial building in five states (and counting).

Relationship to LEED

These trends also affect LEED requirements. Most LEED rating systems reference ASHRAE Standard 90.1 for their energy performance credits. Newer versions of LEED reference newer versions of 90.1, so the minimum requirements keep getting higher.

The impact of this is significant. A recent study by KJWW Engineering Consultants examined the performance of a LEED v2.2 Silver office building and found that the base design wouldn’t meet the minimum energy requirements under LEED v4.

How does LEED compare to state energy codes? Already 75% of states require better energy performance than LEED v2.2 minimums (which references Std. 90.1-2004). And 10% of states already have the same minimum requirements as LEED v4 (which references Std. 90.1-2010). As states begin to adopt the newest version of this standard (Std. 90.1-2013), they will be requiring better energy performance than LEED v4.

If code adoption and efficiency trends continue, state energy codes may surpass LEED as a driver of high performance design by the decade’s end.

Impact on Architects

What does all of this mean for architects?

  • According to KJWW, a major shift will be required to continue achieving LEED points, as most of the “low hanging fruit” is already built into the new standards. Early, frequent energy analysis will be required to identify the best strategies and bundles to achieve target performance.

  • Late-stage optimization of mechanical systems won’t be enough to achieve significant reductions. A focus on building orientation, envelope, and facade design will be needed — elements that are firmly in the architect’s purview.

  • Architects who don’t want to be hemmed in by prescriptive code requirements will opt for performance-based compliance pathways. These allows greater flexibility, but also require the designer to both consider and quantify sustainable strategies during the design process.

  • Architects will be under pressure to deliver required performance without without cost increases. Fortunately, recent examples show that high performance doesn’t have to cost more.

As we’ve written in previous posts, we expect that these trends will drive increasing adoption of performance-based design among architects — as well as drive deep energy reductions across the building sector.

Keep up to date with all the hottest cleantech news by subscribing to our (free) cleantech newsletter, or keep an eye on sector-specific news by getting our (also free) solar energy newsletter, electric vehicle newsletter, or wind energy newsletter.

Print Friendly

Share on Google+Share on RedditShare on StumbleUponTweet about this on TwitterShare on LinkedInShare on FacebookPin on PinterestDigg thisShare on TumblrBuffer this pageEmail this to someone

Tags: , , , , , , , , , , ,


About the Author

is many, many people. We publish a number of guest posts from experts in a large variety of fields. This is our contributor account for those special people. :D



  • http://www.triplepundit.com Nick Aster

    Got an actual list of the states? That would be interesting…

    • Jarrett B Davis

      The most current and probably most frequently updated site to see which states have adopted which code is: http://energycodesocean.org/code-status

      They have residential and commercial adoption interactive models.

  • JamesWimberley

    An large proportion of the legacy building stock will fall ever further behind the best practice embodied in current codes. There’s going to be a huge market for refits.

    • Matt

      With 3 year payback, like seen at the Empire State building. There is no reason not to do a retrofit.
